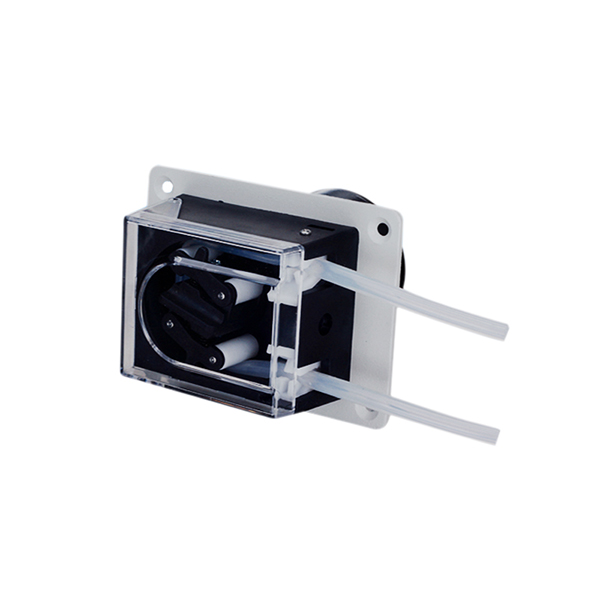

It can provide a maximum flow of 167ml/min, fixed speed, easy installation, suitable for supporting use.
Driven by AC synchronous geared motor, fixed speed, optional speed.
Hose fixing form is optional: elastic clamping type and pipe joint type
The pump head with spring can greatly increase the life of the hose.
It is widely used for equipment feeding, replenishment and transmission. For example, fermentation feed, dry feed and other industrial fields.
| OEM03 technical indicators | |
| range of rotation: | 5rpm, 20rpm, 60rpm, 110rpm fixed speed optional |
| motor: | AC synchronous geared motor |
| Applicable power supply: | DC 220V |
| Applicable environment: | Temperature 0-40℃, humidity <80% |
| Power consumption: | 15W |
| Dimensions: | 105.5×110×80(mm) |
| weight: | 0.7kg |
| model | Applicable pump head | Applicable hose | Flow range (ml/min) |
| OEM03 | TH15 | 16# 25# | ≤167 |
