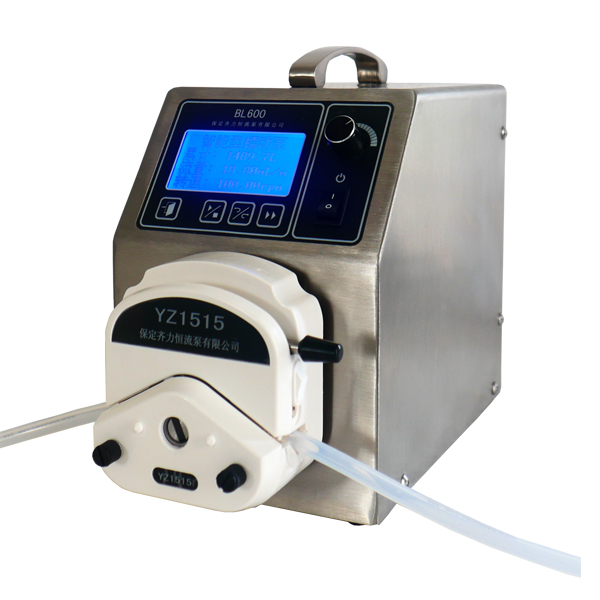

Mainly used in laboratories, the most commonly used basic type, suitable for conventional fluid transmission, pharmaceutical industry, fine chemicals, water treatment,
Environmental protection engineering, food and beverage addition, and acid and alkali supplementation and defoaming in industrial fermentation systems. And many other general fields.
main feature
The stepping motor is subdivided and driven, with high precision and stable operation.
The membrane button adjusts the speed, direction, start/stop, and the operation is simple and convenient; there is also a full-speedbutton for quick filling or emptying.
With power-down memory function, power-on again after power-off, work according to the state before power-off.
It can communicate with PC through RS485.
It can be used with sub-assembly controller, foot switch, external control module and other accessories to realize small batch filling and distribution.
| Speed adjustment range | 0.1-300rpm | Power consumption | ＜50W |
| Speed display resolution | 0.1rpm(＜100rpm), 1rpm(≥100rpm) | working environment | Temperature 0-40℃, humidity <80%, no condensation |
| Display method | 128x64 graphic dot matrix LCD display | Dimensions | 316.5×210×228（mm）(Without pump head) |
| External control input interface | 0-5V,0-10V,4-20mA,0-10kHz | (Length×Width×Height) | 381.8×210×228（mm）(With YZ1515 pump head) |
| Communication Interface | RS485 | Drive weight | 3.8kg |
| Applicable power supply | Wide voltage AC100-240V, 50Hz/60Hz | Protection level | IP31 |
|
|
Applicable hose |
Flow range (mL/min) |
||
|
BL100-02 |
BL300-02 |
BL600-02 |
||
|
DG(6 rollers) |
Inner diameter≤3.17mm,
|
0.0025-48 |
0.0025-48 (Only used within the range of 0.1-100rpm) |
0.0025-48 (Only used within the range of 0.1-100rpm) |
|
DG(10 rollers) |
0.002-32 |
0.002-32 (Only used within the range of 0.1-100rpm) |
0.002-32 (Only used within the range of 0.1-100rpm) |
|
|
YZ1515 |
13# |
0.007-6.3 |
0.007-19 |
0.007-38 |
|
14# |
0.025-25 |
0.025-75 |
0.025-150 |
|
|
19# |
0.042-41.7 |
0.042-125 |
0.042-250 |
|
|
16# |
0.077-76.7 |
0.077-230 |
0.077-460 |
|
|
25# |
0.16-160 |
0.16-480 |
0.16-960 |
|
|
17# |
0.27-266.7 |
0.27-800 |
0.27-1600 |
|
|
18# |
0.38-380 |
0.38-1140 |
0.38-2280 |
|
|
YZ2515 |
15# |
0.16-160 |
0.16-480 |
0.16-960 |
|
24# |
0.27-266.7 |
0.27-800 |
0.27-1600 |
|
